HAULING

SAY GOODBYE TO MANUAL LABOR

With a 220º working pivot radius and an increased angulation of 23º above and below the horizontal, The stone slinger conveyor accurately places material up to 70 feet from the end of the truck, eliminating material handling, reducing construction time, and improving your bottom line.

Safe, sure, and durable, our Stone Shooters are built with the finest materials and components to provide rugged reliability. The Stone Shooter is the construction industry’s preferred materials delivery system for precise, labor-free placement of materials on a job site. Commercial construction companies rely on us to efficiently and effectively place sand, crushed stone, and other aggregates.

As our fleet continues to grow, we prioritize providing the best technologies and vehicles to our customers. Our stone shooters, along with our dump trucks and all our equipment, are regularly updated, maintained, and serviced. Our vehicles are checked daily to ensure safety for both the operator and the job site.

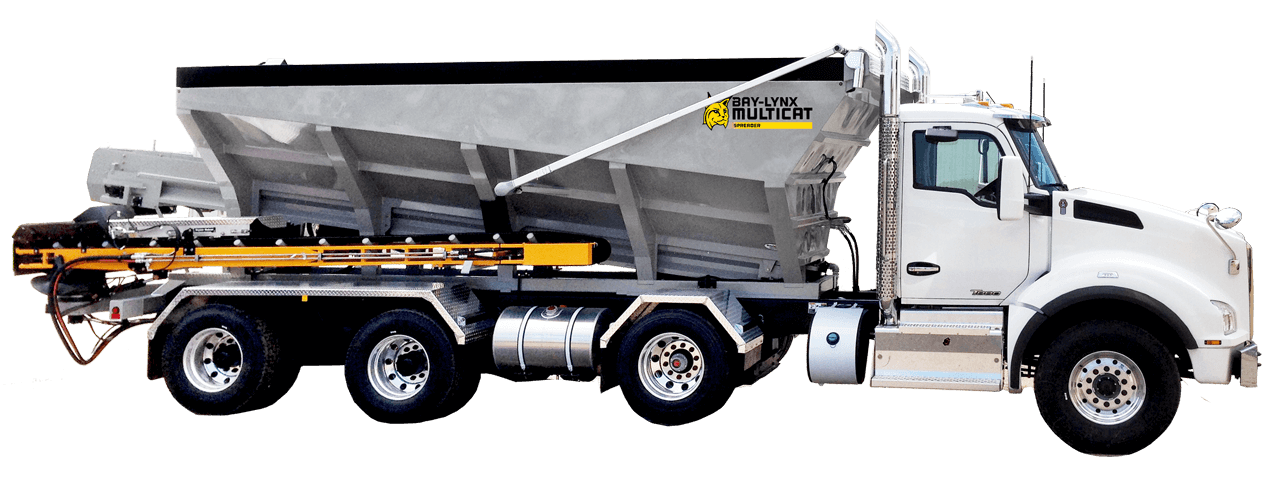

We currently operate five stone shooter trucks and three dump trucks. Our fleet comprises the Ultra 20 and Baylynx Multi Cat shooters and quad-axle dump trucks.

SHOOTER SPECS

Under Body Apron Conveyor:

• 26” or 36″ Wide pintle chain assembly
• 330 PIW belting mechanically fastened to cross slats
• 22” Effective belt exposure between skirting
• Engineered to carry full capacity in transit
• Variable speed hydraulic/planetary gearbox drive

High-Speed Boom Conveyor:

• Super-shield TM that allows more precise control of materials on the belt
• Remote Control
• Ability to place 23 ft above and below the truck
• 220 degrees of working radius
• Variable speed (0-3700 ft/min) hydraulic motor drive

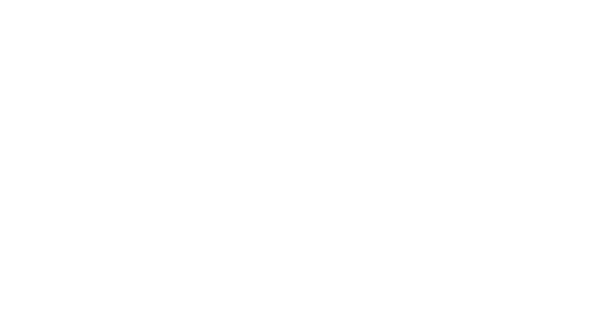

Basic Body Dimension:

• Body (LxWxH) 8’6” x 16’ x 6’-7 1⁄2”
• Plus 6” White Oak box extensions
• Plus 12” Arched Tarp system
• Overall Height on the chassis with extensions and tarp: 8’-1 1⁄2”
• Overall Length with conveyor parked on fender: 20’6”
