REACH CHARTS – Page 3

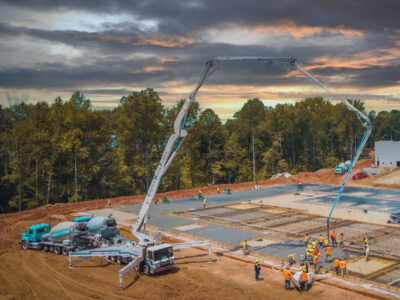

51 METER PUMP

Vertical Reach
164

Horizontal Reach
147'

Reach Depth
115' 2"

Unfolding Height
33′ 5″

Outrigger Spread …

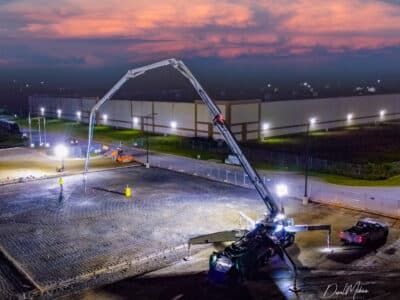

47 METER PUMP

Vertical Reach
151' 3"

Horizontal Reach
138' 1"

Reach Depth
105' 8"

Unfolding Height
31′ 2″

Outrigger Spread …

46 METER PUMP

Vertical Reach
147' 8"

Horizontal Reach
134' 2"

Reach Depth

Unfolding Height
29′ 4″

Outrigger Spread …

40 METER PUMP

Vertical Reach
128' 3"

Horizontal Reach
115' 2"

Reach Depth
82'

Unfolding Height
32′ 10″

Outrigger Spread …

39 METER PUMP

Vertical Reach
125' 8"

Horizontal Reach
110' 3"

Reach Depth
78' 9"

Unfolding Height
29′ 6″

Outrigger Spread …
